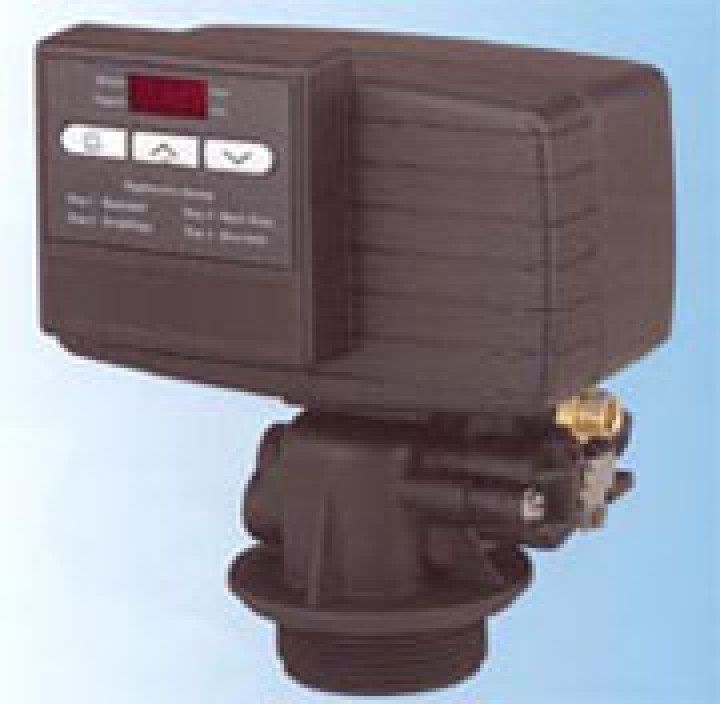

Fleck 5600se
Learn more about the Fleck 5600se system for your home in the Cypress, TX area
5600 SE 1600 3/4″ meter
- Solid state microprocessor with LED display. Time of day, Remaining capacity, Regeneration cycle in process.
- Compact turbine meter downflow or upflow regeneration cycles.
- Choose from 3 modes of operation: immediate meter regeneration, delayed meter regeneration, or delayed time clock regeneration.
- NOVRAM valve status and memory backup.
- Continuous flow rate if 20 gpm.
- Backwash capacity handles tanks up to 12″ diameter for softener applications, 10″ for filter applications.
Fleck® is a trademark of Pentair, Inc.
Options
- Bypass valve
- Backwash filter
- Upflow regeneration
- 1″ inlet/outlet
Valve Specifications
| Valve Material | Noryl® |
|---|---|
| Inlet/Outlet | 3/4" |
| Cycles* | {enter info} |
Flow rates (50 PSI Inlet) – Valve Alone
| Continuous (15 PSI Drop) | 20 gpm |
|---|---|
| Peak (25 PSI Drop) | 26 gpm |
| CV** | 5.2 |
| Max.Backwash (25 PSI Drop) | 7 gpm |
Regeneration
| Downflow/Upflow | Both |
|---|---|
| Adjustable | Yes |
| Time Available | Up to 99 minutes per cycle |
Meter Information
| Meter Accuracy Range | .25 – 15 gpm +/- 5% |
|---|---|
| Meter Capacity Range | 1 – 9,999 gals. |
Dimensions
| Distributor Pilot | 13/16″ or 1″ (1.050) Pipe O.D. |
|---|---|
| Drain Line | 1/2″ NPT (Female) |
| Brine Line | 3/8″ |
| Mounting Base | 2-1/2″-8 NPSM |
| Height from top of tank | 7-1/2″ |
Tank Application – can regenerate/backwash the following
| Water Softener | 6″-12″ diameter |
|---|---|
| Iron Filter | 6″-10″ diameter |
| Sediment Filter | 6″-10″ diameter |
| Carbon Filter | 6″-10″ diameter |
| Neutralizing Filter | 6″-10″ diameter |
Additional Information
| Electrical Rating | 24v, 110v 220v-50 Hz, 60 Hz |
|---|---|
| Pressure | Hydrostatic: 300 PSI Working: 20 – 125 PSI |
| Temperature | 34° – 110° F |
